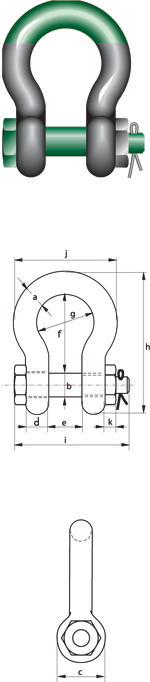

Tragfähigkeit |
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
k |
Gewicht |
Artikelnummer |
| (t) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
| 3,3 |
13,5 |
16 |
34 |
13 |
22 |
51 |
32 |
89 |
82 |
58 |
13 |
0,44 |
1070211 |
| 5,0 |
16,0 |
19 |
40 |
16 |
27 |
64 |
43 |
110 |
98 |
75 |
17 |
0,79 |
1070212 |
| 7,0 |
19,0 |
22 |
46 |
19 |
31 |
76 |
51 |
129 |
114 |
89 |
19 |
1,26 |
1070213 |
| 9,5 |
22,0 |
25 |
52 |
22 |
36 |
83 |
58 |
144 |
130 |
102 |
22 |
1,88 |
1070214 |
| 12,5 |
25,0 |
28 |
59 |
25 |
43 |
95 |
68 |
164 |
150 |
118 |
25 |
2,78 |
1070215 |
| 15,0 |
28,0 |
32 |
66 |
28 |
47 |
108 |
75 |
185 |
166 |
131 |
27 |
3,87 |
1070216 |
| 18,0 |
32,0 |
35 |
72 |
32 |
51 |
115 |
83 |
201 |
178 |
147 |
30 |
5,26 |
1070217 |
| 21,0 |
35,0 |
38 |
80 |
35 |
57 |
133 |
92 |
227 |
197 |
162 |
33 |
6,94 |
1070218 |
| 30,0 |
38,0 |
42 |
88 |
38 |
60 |
146 |
99 |
249 |
202 |
175 |
19 |
8,79 |
1070219 |
| 40,0 |
45,0 |
50 |
103 |
45 |
74 |
178 |
126 |
300 |
249 |
216 |
23 |
15,00 |
1070220 |
| 55,0 |
57,0 |
57 |
117 |
57 |
83 |
197 |
138 |
341 |
286 |
252 |
26 |
22,00 |
1070221 |
| 85,0 |
70,0 |
70 |
143 |
70 |
105 |
260 |
180 |
437 |
344 |
320 |
32 |
42,00 |
1070222 |
| 120,0 |
83,0 |
83 |
162 |
83 |
127 |
329 |
190 |
535 |
403 |
356 |
40 |
70,00 |
1070223 |
| Material: |
Bügel und Bolzen aus legiertem Stahl, Güteklasse 8, vergütet |
| Sicherheitsfaktor: |
Mindestbruchlast = 5-fache Tragfähigkeit/td>
|
| Normen: |
erfüllt die Leistungsanforderungen der US Fed. Spec. RR-C-271
Typ IVA Class 3, Grade B |
| Oberflächenbehandlung: |
feuerverzinkt |
| Temperatureinsatzbereich: |
-20 °C bis +200 °C |
|
