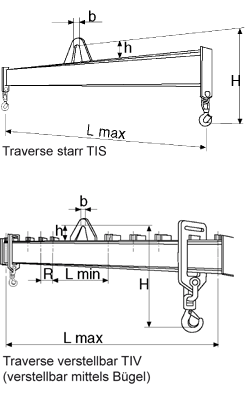

Traverse TIS + TIV starr und verstellbar |
Typ | Tragfähigkeit | Länge (mm) | Raster | Höhe | Ösenmaße | Artikelnummer | ||||
(kg) | max. | min. | (mm) | (mm) | h (mm) | b (mm) | TIS | TIV | ||
1-1 | 1000 | 1000 | 400 | 100 | 360 | 100 | 60 | 1520001 | 1520020 | |
1-2 | 1000 | 2000 | 800 | 200 | 360 | 100 | 60 | 1520002 | 1520021 | |
1-3 | 1000 | 3000 | 1000 | 200 | 380 | 100 | 60 | 1520003 | 1520022 | |
1-4 | 1000 | 4000 | 1500 | 250 | 320 | 100 | 60 | 1520004 | 1520023 | |
2-2 | 2000 | 2000 | 800 | 200 | 420 | 100 | 60 | 1520005 | 1520024 | |
2-3 | 2000 | 3000 | 1000 | 200 | 440 | 100 | 60 | 1520006 | 1520025 | |
2-4 | 2000 | 4000 | 1500 | 250 | 460 | 100 | 60 | 1520007 | 1520026 | |
3-2 | 3000 | 2000 | 800 | 200 | 490 | 120 | 80 | 1520008 | 1520027 | |
3-3 | 3000 | 3000 | 1000 | 200 | 530 | 120 | 80 | 1520009 | 1520028 | |
3-4 | 3000 | 4000 | 1500 | 250 | 550 | 120 | 80 | 1520010 | 1520029 | |
5-2 | 5000 | 2000 | 800 | 200 | 520 | 120 | 80 | 1520011 | 1520030 | |
5-3 | 5000 | 3000 | 1000 | 200 | 540 | 120 | 80 | 1520012 | 1520031 | |
5-4 | 5000 | 4000 | 1500 | 250 | 580 | 120 | 80 | 1520013 | 1520032 | |
8-2 | 8000 | 2000 | 800 | 200 | 640 | 150 | 100 | 1520014 | 1520033 | |
8-3 | 8000 | 3000 | 1000 | 200 | 660 | 150 | 100 | 1520015 | 1520034 | |
8-4 | 8000 | 4000 | 1500 | 250 | 680 | 150 | 100 | 1520016 | 1520035 | |
10-2 | 10000 | 2000 | 800 | 200 | 670 | 150 | 100 | 1520017 | 1520036 | |
10-3 | 10000 | 3000 | 1000 | 200 | 710 | 150 | 100 | 1520018 | 1520037 | |
10-4 | 10000 | 4000 | 1500 | 250 | 750 | 150 | 100 | 1520019 | 1520038 | |
