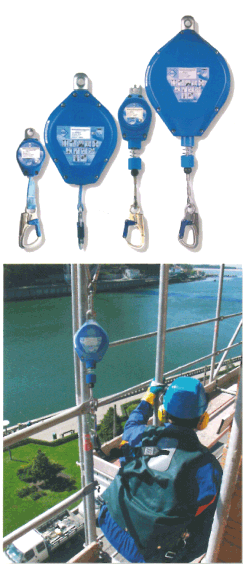

Höhensicherungsgerät EN 360 Typ flexible |
 |
- für Personen bis 130 kg |
Typ | Verbindungs- | Gehäuse | Gewicht | Abmessung | Artikelnummer | |
| mittel | (kg) | (mm) | |||||
| HSG-HWB-2 | 2,0 m Band | Aluminium | 0,80 | 240x84x61 | 1310014 | ||
| HSG-HWB-2,5 | 2,5 m Band | Aluminium | 1,20 | 315x123x75 | 1310015 | ||
| HSG-HWB-3,5 | 3,5 m Band | Aluminium | 1,40 | 315x123x75 | 1310016 | ||
| HSG-HWPB-3,5 | 3,5 m Band | Kunststoff | 1,20 | 326x104x78 | 1310017 | ||
| HSG-HWPB-5,5 | 5,5 m Band | Kunststoff | 1,50 | 300x130x78 | 1310018 | ||
| HSG-HWPB-7 | 7,0 m Band | Kunststoff | 1,80 | 300x165x80 | 1310019 | ||
| HSG-HWPB-9 | 9,0 m Band | Kunststoff | 2,30 | 335x168x88 | 1310020 | ||
| HSG-HWPB-12 | 12,0 m Band | Kunststoff | 3,40 | 370x195x95 | 1310021 | ||
| HSG-HWPB-15 | 15,0 m Band | Kunststoff | 4,80 | 400x195x95 | 1310022 | ||
| HSG-HWS-4,5 | 4,5 m Seil | Aluminium | 2,70 | 400x130x78 | 1310023 | ||
| HSG-HWS-6 | 6,0 m Seil | Aluminium | 3,00 | 400x145x80 | 1310024 | ||
| HSG-HWS-9 | 9,0 m Seil | Aluminium | 3,70 | 455x160x85 | 1310025 | ||
| HSG-HWS-12 | 12,0 m Seil | Aluminium | 5,40 | 490x190x95 | 1310026 | ||
| HSG-HWS-18 | 18,0 m Seil | Aluminium | 6,90 | 540x220x97 | 1310027 | ||
| HSG-HWS-24 | 24,0 m Seil | Aluminium | 8,40 | 575x250x97 | 1310028 | ||
| HSG-HWPS-3 | 3,0 m Seil | Kunststoff | 1,90 | 390x104x78 | 1310029 | ||
| HSG-HWPS-4,5 | 4,5 m Seil | Kunststoff | 2,10 | 400x130x78 | 1310030 | ||
| HSG-HWPS-6 | 6,0 m Seil | Kunststoff | 2,50 | 420x145x80 | 1310031 | ||
| HSG-HWPS-9 | 9,0 m Seil | Kunststoff | 3,20 | 460x168x88 | 1310032 | ||
| HSG-HWPS-12 | 12,0 m Seil | Kunststoff | 4,90 | 500x195x95 | 1310033 | ||
| HSG-HWPS-18 | 18,0 m Seil | Kunststoff | 6,30 | 540x220x97 | 1310034 | ||
| HSG-HWPS-24 | 24,0 m Seil | Kunststoff | 7,30 | 570x250x97 | 1310035 | ||
