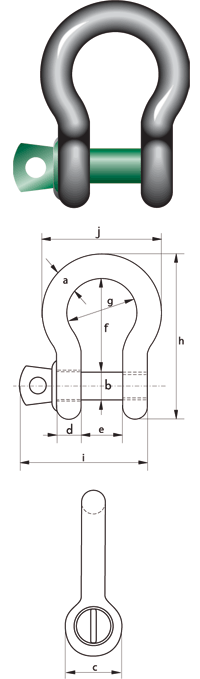

Green Pin ® Standard Schäkel geschweifte Form, mit Augbolzen |
Tragfähigkeit | a | b | c | d | e | f | g | h | i | j | Gewicht | Artikelnummer | |
(t) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
0,33 | 5,0 | 6 | 12,0 | 5,0 | 9,5 | 22,0 | 16 | 36 | 29,5 | 26 | 0,02 | 1070161 | |
0,50 | 7,0 | 8 | 16,5 | 7,0 | 12,0 | 29,0 | 20 | 48,5 | 38 | 34 | 0,05 | 1070162 | |
0,75 | 9,0 | 10 | 20,0 | 9,0 | 13,5 | 32,0 | 22 | 56 | 46,5 | 40 | 0,10 | 1070163 | |
1,00 | 10,0 | 11 | 22,5 | 10,0 | 17,0 | 36,5 | 26 | 63,5 | 54 | 46 | 0,14 | 1070164 | |
1,50 | 11,0 | 13 | 26,5 | 11,0 | 19,0 | 43,0 | 29 | 74 | 59,5 | 51 | 0,19 | 1070165 | |
2,00 | 13,5 | 16 | 34,0 | 13,5 | 22,0 | 51,0 | 32 | 89 | 73 | 58 | 0,36 | 1070166 | |
3,25 | 16,0 | 19 | 40,0 | 16,0 | 27,0 | 64,0 | 43 | 110 | 89 | 75 | 0,63 | 1070167 | |
4,75 | 19,0 | 22 | 46,0 | 19,0 | 31,0 | 76,0 | 51 | 129 | 103 | 89 | 1,01 | 1070168 | |
6,50 | 22,0 | 25 | 52,0 | 22,0 | 36,0 | 83,0 | 58 | 144 | 119 | 102 | 1,50 | 1070169 | |
8,50 | 25,0 | 28 | 59,0 | 25,0 | 43,0 | 95,0 | 68 | 164 | 137 | 118 | 2,21 | 1070170 | |
9,50 | 28,0 | 32 | 66,0 | 28,0 | 47,0 | 108,0 | 75 | 185 | 153 | 131 | 3,16 | 1070171 | |
12,00 | 32,0 | 35 | 72,0 | 32,0 | 51,0 | 115,0 | 83 | 201 | 170 | 147 | 4,31 | 1070172 | |
13,50 | 35,0 | 38 | 80,0 | 35,0 | 57,0 | 133,0 | 92 | 227 | 186 | 162 | 5,55 | 1070173 | |
17,00 | 38,0 | 42 | 88,0 | 38,0 | 60,0 | 146,0 | 99 | 249 | 203 | 175 | 7,43 | 1070174 | |
25,00 | 45,0 | 50 | 103,0 | 45,0 | 74,0 | 178,0 | 126 | 300 | 243 | 216 | 12,84 | 1070175 | |
35,00 | 50,0 | 57 | 111,0 | 50,0 | 83,0 | 197,0 | 138 | 331 | 272 | 238 | 18,15 | 1070176 | |
42,50 | 57,0 | 65 | 130,0 | 57,0 | 95,0 | 222,0 | 160 | 377 | 310 | 274 | 26,29 | 1070177 | |
55,0 | 65,0 | 70 | 145,0 | 65,0 | 105,0 | 260,0 | 180 | 433 | 344 | 310 | 37,60 | 1070178 | |
Material: | Bügel und Bolzen aus hochfestem Stahl, Güteklasse 6, vergütet | ||||||||||||
Sicherheitsfaktor: | Mindestbruchlast = 6-fache Tragfähigkeit | ||||||||||||
Normen: | EN 13889 und erfüllt die Leistungsanforderungen der US Fed. Spec. RR-C-271 Typ IVA Class 3, Grade A |
||||||||||||
Oberflächenbehandlung: | feuerverzinkt | ||||||||||||
