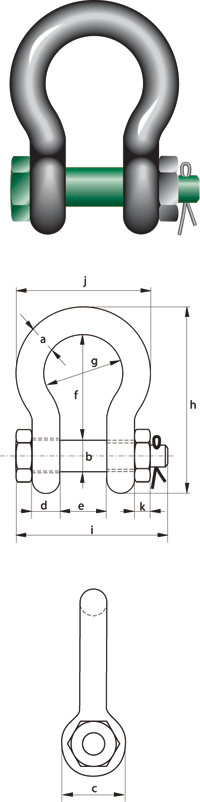

Green Pin ® Standard Schäkel geschweifte Form, mit Sicherheitsbolzen, Mutter und Splint |
Tragfähigkeit | a | b | c | d | e | f | g | h | i | j | k | Gewicht | Artikelnummer | |
(t) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
0,50 | 7,0 | 8 | 16,5 | 7,0 | 12,0 | 29,0 | 20 | 48,5 | 42 | 34 | 4 | 0,06 | 1070179 | |
0,75 | 9,0 | 10 | 20,0 | 9,0 | 13,5 | 32,0 | 22 | 56 | 50 | 40 | 5 | 0,11 | 1070180 | |
1,00 | 10,0 | 11 | 22,5 | 10,0 | 17,0 | 36,5 | 26 | 63,5 | 60 | 46 | 8 | 0,16 | 1070181 | |
1,50 | 11,0 | 13 | 26,5 | 11,0 | 19,0 | 43,0 | 29 | 74 | 67 | 51 | 11 | 0,22 | 1070182 | |
2,00 | 13,5 | 16 | 34,0 | 13,0 | 22,0 | 51,0 | 32 | 89 | 82 | 58 | 13 | 0,42 | 1070183 | |
3,25 | 16,0 | 19 | 40,0 | 16,0 | 27,0 | 64,0 | 43 | 110 | 98 | 75 | 17 | 0,74 | 1070184 | |
4,75 | 19,0 | 22 | 46,0 | 19,0 | 31,0 | 76,0 | 51 | 129 | 114 | 89 | 19 | 1,18 | 1070185 | |
6,50 | 22,0 | 25 | 52,0 | 22,0 | 36,0 | 83,0 | 58 | 144 | 130 | 102 | 22 | 1,77 | 1070186 | |
8,50 | 25,0 | 28 | 59,0 | 25,0 | 43,0 | 95,0 | 68 | 164 | 150 | 118 | 25 | 2,58 | 1070187 | |
9,50 | 28,0 | 32 | 66,0 | 28,0 | 47,0 | 108,0 | 75 | 185 | 166 | 131 | 27 | 3,66 | 1070188 | |
12,00 | 32,0 | 35 | 72,0 | 32,0 | 51,0 | 115,0 | 83 | 201 | 178 | 147 | 30 | 4,91 | 1070189 | |
13,50 | 35,0 | 38 | 80,0 | 35,0 | 57,0 | 133,0 | 92 | 227 | 197 | 162 | 33 | 6,45 | 1070190 | |
17,00 | 38,0 | 42 | 88,0 | 38,0 | 60,0 | 146,0 | 99 | 249 | 202 | 175 | 19 | 8,19 | 1070191 | |
25,00 | 45,0 | 50 | 103,0 | 45,0 | 74,0 | 178,0 | 126 | 300 | 249 | 216 | 23 | 14,22 | 1070192 | |
35,00 | 50,0 | 57 | 111,0 | 50,0 | 83,0 | 197,0 | 138 | 331 | 269 | 238 | 26 | 19,85 | 1070193 | |
42,50 | 57,0 | 65 | 130,0 | 57,0 | 95,0 | 222,0 | 160 | 377 | 301 | 274 | 29 | 28,33 | 1070194 | |
55,00 | 65,0 | 70 | 145,0 | 65,0 | 105,0 | 260,0 | 180 | 433 | 330 | 310 | 32 | 39,59 | 1070195 | |
85,00 | 75,0 | 83 | 162 | 73,0 | 127,0 | 329,0 | 190 | 527 | 380 | 340 | 39 | 62,00 | 1070196 | |
Material: | Bügel und Bolzen aus hochfestem Stahl, Güteklasse 6, vergütet | |||||||||||||
Sicherheitsfaktor: | Mindestbruchlast = 6-fache Tragfähigkeit | |||||||||||||
Normen: | EN 13889 und erfüllt die Leistungsanforderungen der US Fed. Spec. RR-C-271 Typ IVA Class 3, Grade A |
|||||||||||||
Oberflächenbehandlung: | feuerverzinkt | |||||||||||||
Temperatureinsatzbereich: | -20 °C bis + 200 °C | |||||||||||||
