Green Pin ® Standard Schäkel gerade Form, mit Sicherheitsbolzen, Mutter und Splint |

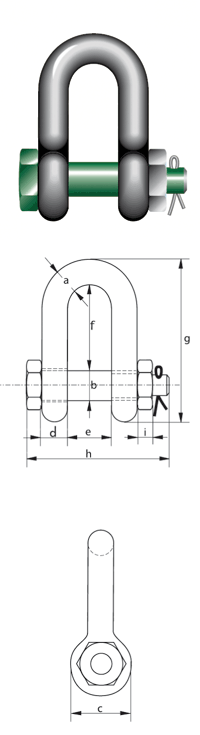

Tragfähigkeit | a | b | c | d | e | f | g | h | i | Gewicht | Artikelnummer | |
(t) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
2,00 | 13,5 | 16 | 34,0 | 13,0 | 22,0 | 43,0 | 81 | 82 | 13 | 0,39 | 1070147 | |
3,25 | 16,0 | 19 | 40,0 | 16,0 | 27,0 | 51,0 | 97 | 98 | 17 | 0,67 | 1070148 | |
4,75 | 19,0 | 22 | 46,0 | 19,0 | 31,0 | 59,0 | 112 | 114 | 19 | 1,08 | 1070149 | |
6,50 | 22,0 | 25 | 52,0 | 22,0 | 36,0 | 73,0 | 134 | 130 | 22 | 1,66 | 1070150 | |
8,50 | 25,0 | 28 | 59,0 | 25,0 | 43,0 | 85,0 | 154 | 150 | 25 | 2,46 | 1070151 | |
9,50 | 28,0 | 32 | 66,0 | 28,0 | 47,0 | 90,0 | 167 | 166 | 27 | 3,40 | 1070152 | |
12,00 | 32,0 | 35 | 72,0 | 32,0 | 51,0 | 94,0 | 180 | 178 | 30 | 4,51 | 1070153 | |
13,50 | 35,0 | 38 | 80,0 | 35,0 | 57,0 | 115,0 | 209 | 197 | 33 | 6,10 | 1070154 | |
17,00 | 38,0 | 42 | 88,0 | 38,0 | 60,0 | 127,0 | 230 | 202 | 19 | 7,63 | 1070155 | |
25,00 | 45,0 | 50 | 103,0 | 45,0 | 74,0 | 149,0 | 271 | 249 | 23 | 13,25 | 1070156 | |
35,00 | 50,0 | 57 | 111,0 | 50,0 | 83,0 | 171,0 | 305 | 269 | 26 | 18,53 | 1070157 | |
42,50 | 57,0 | 65 | 130,0 | 57,0 | 95,0 | 190,0 | 345 | 301 | 29 | 25,94 | 1070158 | |
55,00 | 65,0 | 70 | 145,0 | 65,0 | 105,0 | 203,0 | 376 | 330 | 32 | 35,33 | 1070159 | |
85,00 | 75,0 | 83 | 162 | 73,0 | 127,0 | 229,0 | 427 | 380 | 39 | 52,97 | 1070160 | |
Material: | Bügel und Bolzen aus hochfestem Stahl, Güteklasse 6, vergütet | |||||||||||
Sicherheitsfaktor: | Mindestbruchlast = 6-fache Tragfähigkeit | |||||||||||
Normen: | EN 13889 und erfüllt die Leistungsanforderungen der US Fed. Spec. RR-C-271 Typ IVB Class 3, Grade A |
|||||||||||
Oberflächenbehandlung: | feuerverzinkt | |||||||||||
Temperatureinsatzbereich: | -20 °C bis + 200 °C | |||||||||||
