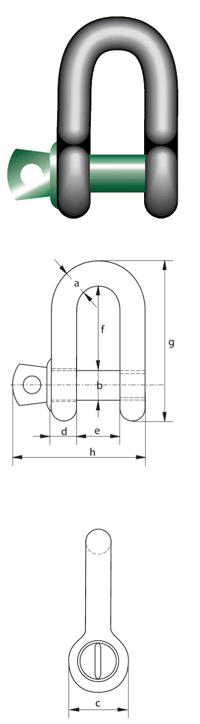

Tragfähigkeit |
a |
b |
c |
d |
e |
f |
g |
h |
Gewicht |
Artikelnummer |
| (t) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
| 0,33 |
5,0 |
6 |
12,0 |
5,0 |
9,5 |
19,0 |
33 |
29,5 |
0,02 |
1070129 |
| 0,50 |
7,0 |
8 |
16,5 |
7,0 |
12,0 |
22,0 |
41,5 |
38,0 |
0,05 |
1070130 |
| 0,75 |
9,0 |
10 |
20,0 |
9,0 |
13,5 |
26,0 |
50 |
46,5 |
0,09 |
1070131 |
| 1,00 |
10,0 |
11 |
22,5 |
10,0 |
17,0 |
32,0 |
59 |
54,0 |
0,14 |
1070132 |
| 1,50 |
11,0 |
13 |
26,5 |
11,0 |
19,0 |
37,0 |
68 |
59,5 |
0,19 |
1070133 |
| 2,00 |
13,5 |
16 |
34,0 |
13,0 |
22,0 |
43,0 |
81 |
73 |
0,32 |
1070134 |
| 3,25 |
16,0 |
19 |
40,0 |
16,0 |
27,0 |
51,0 |
97 |
89 |
0,54 |
1070135 |
| 4,75 |
19,0 |
22 |
46,0 |
19,0 |
31,0 |
59,0 |
112 |
103 |
0,87 |
1070136 |
| 6,50 |
22,0 |
25 |
52,0 |
22,0 |
36,0 |
73,0 |
134 |
119 |
1,34 |
1070137 |
| 8,50 |
25,0 |
28 |
59,0 |
25,0 |
43,0 |
85,0 |
154 |
137 |
2,08 |
1070138 |
| 9,50 |
28,0 |
32 |
66,0 |
28,0 |
47,0 |
90,0 |
137 |
153 |
2,77 |
1070139 |
| 12,00 |
32,0 |
35 |
72,0 |
32,0 |
51,0 |
94,0 |
180 |
170 |
3,72 |
1070140 |
| 13,50 |
35,0 |
38 |
80,0 |
35,0 |
57,0 |
115,0 |
209 |
186 |
5,14 |
1070141 |
| 17,00 |
38,0 |
42 |
88,0 |
38,0 |
60,0 |
127,0 |
230 |
203 |
6,85 |
1070142 |
| 25,00 |
45,0 |
50 |
103,0 |
45,0 |
74,0 |
149,0 |
271 |
243 |
11,45 |
1070143 |
| 35,00 |
50,0 |
57 |
111,0 |
50,0 |
83,0 |
171,0 |
305 |
272 |
16,86 |
1070144 |
| 42,50 |
57,0 |
65 |
130,0 |
57,0 |
95,0 |
190,0 |
345 |
310 |
24,61 |
1070145 |
| 55,0 |
65,0 |
70 |
145,0 |
65,0 |
105,0 |
203,0 |
376 |
344 |
32,65 |
1070146 |
| Material: |
Bügel und Bolzen aus hochfestem Stahl, Güteklasse 6, vergütet |
| Sicherheitsfaktor: |
Mindestbruchlast = 6-fache Tragfähigkeit |
| Normen: |
EN 13889 und erfüllt die Leistungsanforderungen der US Fed. Spec. RR-C-271
Typ IVA Class 2, Grade A |
| Oberflächenbehandlung: |
feuerverzinkt |
| Temperatureinsatzbereich: |
-20 °C bis + 200 °C |
|
