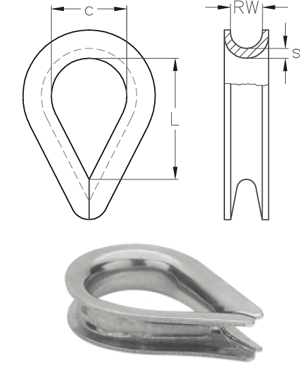

NIRO Kausche |
Rillenweite RW | c | L | s | Artikelnummer | |
mm | mm | mm | mm | ||
3 | 10 | 18 | 1,0 | 308900003 | |
4 | 11 | 20 | 1,0 | 308900004 | |
5 | 13 | 21 | 1,0 | 308900005 | |
6 | 16 | 28 | 1,2 | 308900006 | |
7 | 17 | 31 | 1,2 | 308900007 | |
8 | 19 | 33 | 1,4 | 308900008 | |
10 | 24 | 38 | 1,9 | 308900010 | |
12 | 27 | 42 | 2,0 | 308900012 | |
14 | 33 | 51 | 2,2 | 308900014 | |
16 | 37 | 60 | 2,5 | 308900016 | |
18 | 41 | 67 | 4,0 | 308900018 | |
20 | 46 | 73 | 4,0 | 308900020 | |
22 | 49 | 78 | 5,0 | 308900022 | |
24 | 55 | 93 | 5,0 | 308900024 | |
28 | 67 | 105 | 6,0 | 308900028 |
