NIRO Drahtseilklemme |

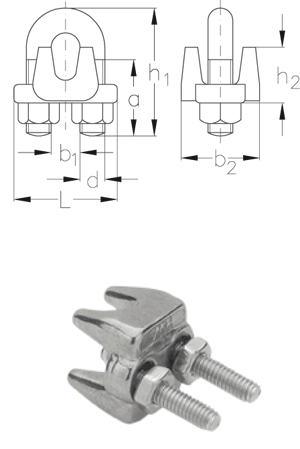

NIRO Drahtseilklemme schwere Ausführung | |||||||||
Nenngröße mm | a | b1 | b2 | d | h1 | h2 | L | Artikelnummer | |
=größter Seil-ø | mm | mm | mm | mm | mm | mm | |||
2 | 10 | 4 | 15 | M3 | 17 | 10 | 14 | 309000002 | |
3 | 12 | 5 | 15 | M3 | 21 | 12 | 16 | 309000003 | |
4 | 13 | 6 | 18 | M4 | 23 | 13 | 18 | 309000004 | |
5 | 14 | 7 | 21 | M5 | 27 | 16 | 20 | 309000005 | |
6 | 18 | 8 | 23 | M6 | 32 | 18 | 27 | 309000006 | |
8 | 22 | 10 | 28 | M8 | 41 | 20 | 34 | 309000008 | |
10 | 27 | 12 | 36 | M10 | 51 | 23 | 44 | 309000010 | |
12 | 33 | 14 | 38 | M12 | 62 | 27 | 50 | 309000012 | |
14 | 38 | 15 | 44 | M12 | 69 | 31 | 52 | 309000014 | |
16 | 45 | 18 | 47 | M14 | 79 | 35 | 59 | 309000016 | |
19 | 47 | 20 | 52 | M14 | 81 | 38 | 61 | 309000018 | |
22 | 61 | 25 | 61 | M18 | 103 | 45 | 77 | 309000022 | |

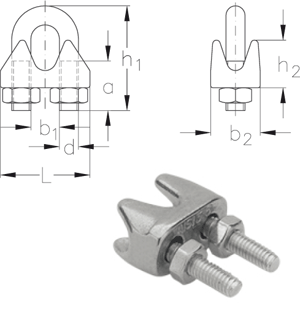

NIRO Drahtseilklemme leichte Ausführung | |||||||||
Nenngröße mm | a | b1 | b2 | d | h1 | h2 | L | Artikelnummer | |
=größter Seil-ø | mm | mm | mm | mm | mm | mm | |||
2 | 10 | 4 | 10 | M3 | 18 | 10 | 18 | 309010002 | |
3 | 12 | 5 | 10 | M3 | 22 | 11 | 19 | 309010003 | |
4 | 12 | 6 | 11 | M4 | 23 | 13 | 22 | 309010004 | |
5 | 15 | 7 | 13 | M5 | 28 | 15 | 26 | 309010005 | |
6 | 18 | 8 | 16 | M6 | 33 | 17 | 29 | 309010006 | |
8 | 18 | 11 | 18 | M6 | 36 | 20 | 32 | 309010008 | |
10 | 22 | 13 | 20 | M8 | 45 | 23 | 38 | 309010010 | |
13 | 26 | 15 | 26 | M10 | 55 | 25 | 47 | 309010013 | |
16 | 30 | 18 | 27 | M10 | 66 | 31 | 54 | 309010016 | |
19 | 35 | 21 | 29 | M12 | 67 | 38 | 61 | 309010019 | |
22 | 40 | 24 | 31 | M12 | 84 | 43 | 64 | 309010022 | |
25 | 45 | 27 | 31 | M14 | 96 | 43 | 68 | 309010025 |
