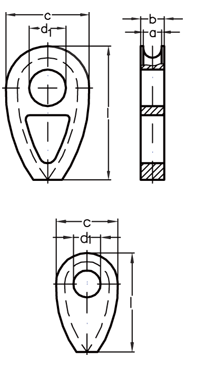

Solid thimbles DIN 3091, self-coloured nominal size 8-14 without triangle hole |
![]() |
![]() ![]() |
nominal size= | a | b | d1 ca. (mm) | d1 max (mm) | c | l | weight | stock no. | |
max. rope-ø | (mm) | ca. (mm) | standard diam. | possible machined | (mm) | (mm) | (kg) | standard diam. (not machined) | possible machined | |
8 | 9 | 15,0 | 14 | 20 | 40 | 66 | 0,20 | 1060240 | 1060255 | |
10 | 11 | 17,5 | 18 | 25 | 50 | 82 | 0,30 | 1060241 | 1060256 | |
12 | 13 | 20,0 | 21 | 30 | 60 | 98 | 0,50 | 1060242 | 1060257 | |
14 | 16 | 23,5 | 25 | 35 | 70 | 114 | 0,70 | 1060243 | 1060458 | |
16 | 18 | 26,0 | 28 | 40 | 80 | 130 | 0,80 | 1060244 | 1060259 | |
18 | 20 | 28,5 | 31 | 45 | 90 | 145 | 1,10 | 1060245 | 1060260 | |
20 | 22 | 31,0 | 35 | 50 | 100 | 161 | 1,40 | 1060246 | 1060261 | |
22 | 24 | 33,5 | 38 | 55 | 110 | 177 | 1,80 | 1060247 | 1060262 | |
24 | 26 | 36,0 | 41 | 60 | 120 | 193 | 2,30 | 1060248 | 1060263 | |
26 | 29 | 39,5 | 44 | 65 | 130 | 209 | 3,00 | 1060249 | 1060264 | |
28 | 31 | 42,0 | 47 | 70 | 140 | 224 | 3,70 | 1060250 | 1060265 | |
32 | 35 | 47,0 | 53 | 80 | 160 | 256 | 5,30 | 1060251 | 1060266 | |
36 | 40 | 53,0 | 59 | 90 | 180 | 288 | 7,50 | 1060252 | 1060267 | |
40 | 44 | 58,0 | 65 | 100 | 200 | 320 | 10,40 | 1060253 | 1060268 | |
44 | 48 | 63,0 | 70 | 110 | 220 | 352 | 13,40 | 1060254 | 1060269 | |
The solid thimbles are supplied with a standard diameter "d1" (without additional machining) unless specified otherwise. should the customer request a larger eye diameter than the above specified max. d1, we are not responsible for any premature breaking of the product or damage of any kind. |
