Turnbuckles/Rigging screws acc. to DIN 1478, jaw-jaw |
![]() |
- galvanized - Hexagon screw acc. to DIN 601, - scres acc. to DIN 934 with Self-locking hexagon nut
|

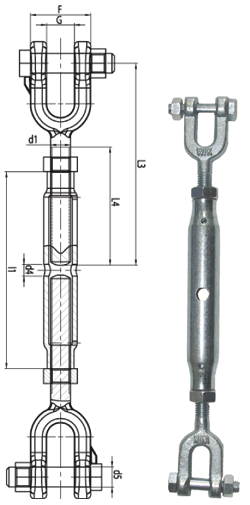

WLL | d1 | d5 | Breaking load | F | G | l1 | l3 | l4 | weight | stock no. |
(t) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
0,25 | M 8 | M6x35 | 10 | 25 | 8 | 110 | 101 | 63 | 0,26 | 1060270 | |
0,30 | M10 | M8x40 | 12 | 29 | 10 | 125 | 122 | 75 | 0,45 | 1060271 | |
0,60 | M12 | M10x50 | 24 | 35 | 14 | 125 | 151 | 95 | 0,66 | 1060272 | |
1,50 | M16 | M16 | 70 | 46 | 20 | 170 | 175 | 105 | 1,58 | 1060273 | |
3,00 | M20 | M20 | 135 | 61 | 28 | 200 | 205 | 120 | 3,02 | 1060274 | |
5,50 | M24 | M24 | 250 | 71 | 33 | 255 | 255 | 150 | 5,09 | 1060275 | |
8,00 | M30 | M30 | 360 | 95 | 44 | 255 | 300 | 175 | 9,82 | 1060276 | |
WLL is stamped from M20 . Dimension and weights approximate. |
|||||||||||
