Pear-shaped wire rope clips galvanized |
![]() |
![]() |

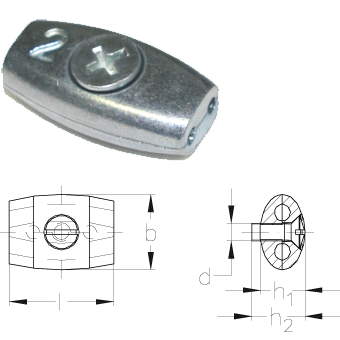

nominal size | b | d | h1 | h2 | l | weight | stock no. |
rope-ø (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | |||
2 | 15 | M 5 | 11 | 13 | 28 | 0,020 | 1060158 | |
3 | 15 | M 5 | 12 | 13 | 28 | 0,021 | 1060159 | |
4 | 20 | M 6 | 14 | 18 | 34 | 0,039 | 1060160 | |
5 | 21 | M 6 | 15 | 18 | 34 | 0,040 | 1060161 | |
6 | 25 | M 6 | 15 | 18 | 35 | 0,048 | 1060162 | |
Pear-shaped wire rope clips are not suitable for safety applications. | ||||||||
