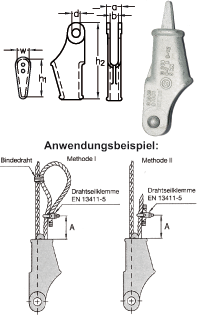

Open wedge socket similar to DIN 43148 |
![]() |
with bolt and cotter pin, galvanized
|
nominal size | number of holes | rated load | a | b | d | h1 | h2 | w | weight | stock no. |
rope-ø (mm) | in the wedge | (kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
2 - 3 | 0 | 50 | 15 | 8 | 7,5 | 37 | 66 | 12,5 | 0,10 | 1060490 | |
4 - 5 | 0 | 250 | 23 | 12 | 12 | 67 | 108 | 16 | 0,40 | 1060491 | |
6 - 7 | 3 | 500 | 26 | 14 | 14 | 85 | 150 | 30 | 0,80 | 1060492 | |
8 | 2 | 500 | 26 | 14 | 14 | 81 | 150 | 24 | 0,70 | 1060493 | |
9 - 12 | 1 | 500 | 26 | 14 | 14 | 76 | 150 | 20 | 0,70 | 1060494 | |
10 - 12 | 2 | 1.000 | 31 | 17 | 17 | 81 | 163 | 24 | 0,80 | 1060495 | |
12 - 14 | 1 | 1.000 | 31 | 17 | 17 | 76 | 163 | 20 | 0,80 | 1060496 | |
12 - 15 | 0 | 2.500 | 40 | 20 | 20 | 107 | 220 | 36 | 2,60 | 1060497 | |
Other sizes and other designs on request. Distance A ( see example) should be between 50-75% of the total length of the wedge! |
|||||||||||
Bolt and cotter pin for Open wedge socket similar to DIN 43148 |
|||||||||||
|
nominal size | rated load | stock no. | stock no. | |||||||
rope-ø (mm) | (kg) | bolt | cotter pin | ||||||||
2 - 3 | 50 | 1060498 | 1060506 | ||||||||
4 - 5 | 250 | 1060499 | 1060507 | ||||||||
6 - 7 | 500 | 1060500 | 1060508 | ||||||||
8 | 500 | 1060501 | 1060509 | ||||||||
9 - 12 | 500 | 1060502 | 1060510 | ||||||||
10 - 12 | 1.000 | 1060503 | 1060511 | ||||||||
12 - 14 | 1.000 | 1060504 | 1060512 | ||||||||
12 - 15 | 2.500 | 1060505 | 1060513 | ||||||||
