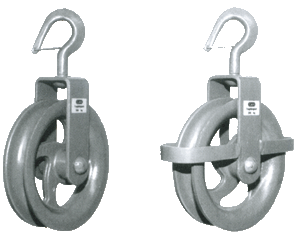

building draw pulleys Nr. 17
with a simple steel bow

building draw pulleys Nr. 18
with Cross-bar steel

roll-ø for rope-ø WLL lenght axle length weight ca. kg) stock no.
(mm) to (mm) (kg) (mm) (mm) Nr. 17 Nr. 18 Nr. 17 Nr. 18
120 22 150 230 75 1,35 1,45 1100013 1100020
140 25 150 245 75 1,65 1,75 1100014 1100021
160 25 200 272 75 1,90 2,05 1100015 1100022
190 28 200 320 90 3,15 3,50 1100016 1100023
220 28 250 350 90 4,00 4,40 1100017 1100024
250 29 250 380 90 3,80 4,30 1100018 1100026
300 30 300 430 90 5,40 5,90 1100019 1100026
with swivel hook with safety, gray blue painted

building draw pulleys Nr. 17/18
