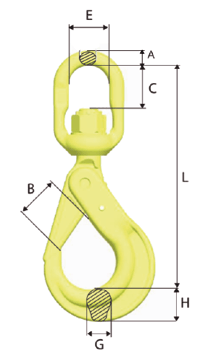

Safety swiel hook type BKL
with brass bushing
Safety swiel hook type BKL nominal size WLL L B C E A G H weight ca. stock no.
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
6-10 1.500 149 28 23 33 11 15 21 0,7 1170077
7/8-10 2.500 183 37 27 38 12 17 26 1,20 1170078
10-10 4.000 218 45 37 44 15 21 31 2,0 1170079
13-10 6.700 282 55 49 48 19 30 40 4,00 1170080
16-10 10.000 341 62 65 61 25 37 50 7,20 1170081
18/20-10 16.000 368 68 70 72 31 44 62 11,40 1170082
When loaded in line along centre line.
If it is necessary to revolve hooks under load, we recommend the use of ball bearing hooks.
