Master link
without flat part

for EN 818-4 for 1 leg and 2 leg chain slings
for EN 13414-1 for 1-leg and 2-leg wire rope slings
acc. to EN 1677-4

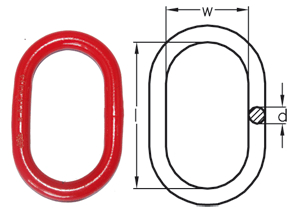

Master link without flat part

nominal size WLL fits for chain d l w weight stock no.
(kg) 1-leg 2-leg (mm) (mm) (mm) (kg)
A13 1.680 6/7-8 6-8 13 90 50 0,30 1150001
A16 2.500 8-8 7-8 16 110 60 0,50 1150002
A18 3.300 10-8 8-8 18 130 70 0,80 1150003
A20 4.350 - 10-8 20 140 80 1,10 1150004
A22 5.650 13-8 - 22 160 90 1,50 1150005
A26 8.400 16-8 13-8 26 180 100 2,30 1150006
A32 12.500 18/19/20-8 16-8 32 230 125 4,40 1150007
A36 16.000 22-8 18-8 36 250 140 6,20 1150008
A40 18.000 - 19/20-8 40 290 160 8,80 1150009
A45 25.000 26/28-8 22-8 45 320 175 12,00 1150010
A50 31.500 32-8 26-8 50 340 190 16,00 1150011
The WLL of the sizes A13 up to A26 are adjusted to the WLL of the EN 13414-1!
