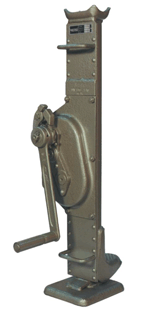

Steel lifting jack VHS & KBH | ![]() |
![]() |
||||||
type | safety | Construction | standard lift | claw height | weight | stock no. |
working load (kg) | height(mm) | (mm) | lowest position (mm) | (kg) | ||
VHS-1,5 | 1500 | 725 | 350 | 70 | 12,0 | 1610006 |
VHS-3,0 | 3000 | 725 | 350 | 75 | 20,0 | 1610007 |
VHS-5,0 | 5000 | 725 | 300 | 70 | 25,0 | 1610008 |
VHS-10,0 | 10000 | 800 | 300 | 90 | 40,0 | 1610009 |
KBH-1,5 | 1500 | 570 | 300 | 70 | 11,0 | 1610010 |
KBH-3,0 | 3000 | 570 | 300 | 75 | 18,0 | 1610011 |
KBH-5,0 | 5000 | 600 | 300 | 70 | 22,0 | 1610012 |
KBH-10,0 | 10000 | 650 | 300 | 80 | 38,0 | 1610013 |
Properties: |
