Ratchet for lashing |
 |

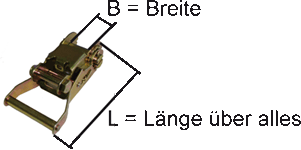

| type | LC | strap width | dimensions (mm) | weight | stock no. | ||
| (daN) | (mm) | B | L | (kg) | |||
| ratchet varnished |  |
400 | 25 | 27,5 | 112 | 0,20 | 1450001 |
| ratchet |  |
750 | 25 | 28 | 131 | 0,37 | 1450002 |
| ratched |  |
1.000 | 50 | 52,5 | 134 | 0,54 | 1450003 |
| ratched |  |
1.500 | 35 | 39 | 157 | 0,57 | 1450004 |
| ratched |  |
2.500 | 50 | 53 | 235 | 1,00 | 1450005 |
| ratchet with swivel hook |  |
2.500 | 50 | 53 | 170 | 1,14 | 1450006 |
| long lever ratchet |  |
2.500 | 50 | 52 | 330 | 1,60 | 1450007 |
| ratchet |  |
5.000 | 75 | 78,5 | 325 | 3,19 | 1450008 |
| ratchet A2 (AISI 304) |  |
750 | 25 | 28 | 131 | 0,31 | 1450009 |
| ratchet A2 (AISI 304) |  |
750 | 35 | 41,5 | 137 | 0,44 | 1450010 |
| ratchet A2 (AISI 304) |  |
1.500 | 50 | 53 | 230 | 1,19 | 1450011 |
| Abbildungen und Maße können abweichen. | |||||||
 |
|||||||
