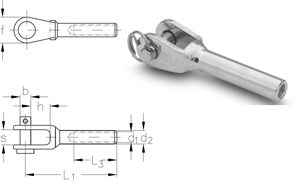

ASS Threaded jaw with internal thread, Mini type |
|
 |
||||||||||
| nominal size | d1 | d2 | h | s | b | L1 | L3 | stock no. | |
| mm | mm | mm | mm | mm | mm | right hand thread | left hand thread | |||
| M4 | M4 | 5,5 | 9,5 | 7,5 | 5 | 45 | 15 | 312010004 | 312011004 | |
| M5 | M5 | 7,5 | 9,5 | 7,5 | 5 | 50 | 20 | 312010005 | 312011005 | |
| M6 | M6 | 7,5 | 10,0 | 10,0 | 6 | 55 | 25 | 312010006 | 312011006 | |
| M8 | M8 | 12,5 | 11,0 | 11,0 | 8 | 65 | 30 | 312010008 | 312011008 | |
| All threaded jaws are delivered with right hand thread unless specified otherwise. | ||||||||||
