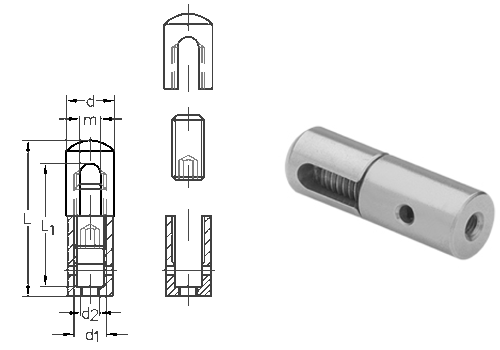

ASS Hanging unit, simple type with attaching sleeve |
![]() |
![]() |
||||||||||
![]() | nominal size | *rope ø horizontal | rope-ø vertical | L | L1 | m | d | d1 | d2 | stock no. |
mm | mm | mm | mm | mm | mm | |||||
4 | 3+4 | 1,5+2 | 37,0 | 29 | 4,5 | 12 | M8 | M4 | 392510004 | |
6 | 5+6 | 3+4 | 48,5 | 38 | 6,5 | 15 | M10 | M6 | 392510006 | |
*For the assembly the horizontal ropes have to be swaged on a ASS Cylindrical terminal. Size M10 might be assembled with a rope 2 mm and an ASS Clamping ring as well.
|
||||||||||
