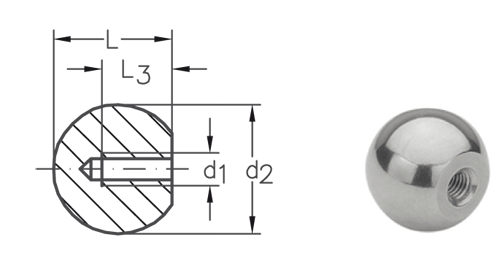

ASS Ball with internal thread, right hand |
|
 |
||||||
| nominal size | thread | d2 | L | L3 | stock no. |
| d1 | mm | mm | mm | |||
| M4/15 | M4 | 15 | 14,0 | 9 | 333210400 | |
| M5/20 | M5 | 20 | 18,5 | 12 | 333210520 | |
| M5/24 | M5 | 24 | 22,0 | 15 | 333210500 | |
| M6/20 | M6 | 20 | 18,5 | 12 | 333210620 | |
| M6/24 | M6 | 24 | 22,0 | 15 | 333210600 | |
| M8/24 | M8 | 24 | 22,0 | 15 | 333210800 | |
| M10/24 | M10 | 24 | 22,0 | 15 | 333211000 |
