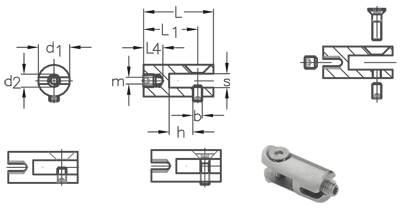

ASS Clamping jaw | ![]() |
![]() |
||||||||||||
![]() | nominal size | rope-ø | L | L1 | L4 | d1 | d2 | m | h | b | s | stock no. |
mm | mm | mm | mm | mm | mm | mm | mm | |||||
2 | 1,5+2 | 22 | 17 | 5 | 10 | M4 | 2,2 | 7,5 | M3 | 4,5 | 352210002 | |
The ASS Clamping Jaw is supplied with a M4x4 stud for fixing the rope and a choice of M3x5 stud or M3x10 countersunk bolt for fixing the display material etc. | ||||||||||||
