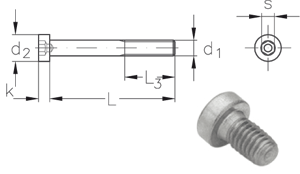

NIRO Cylindrical screw
mit with hexagon socket head

- acc. to DIN 6912
- mit right hand thread
NIRO Cylindrical screw nominal size d1 d2 L L3 k s stock no.
mm mm mm mm mm
M4x12 M4 7,0 12 - 2,8 3 303012412
M5x40 M5 8,5 40 16 3,5 4 303012540
M6x60 M6 10,0 60 18 4,0 5 303012660
M8x60 M8 13,0 60 22 5,0 6 303012860
