ASS Hanging System

drawing article stock no.

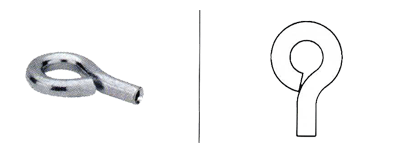

Pressed eye Pressed eye
made of steel/aluminium
BL 125 daN
387010001

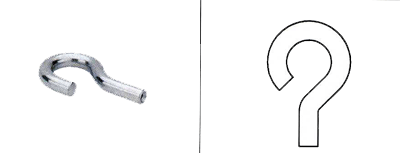

Pressed bent hook Pressed bent hook
made of 1.0718 galv.
BL approx. 50 daN
387010006
Pressed bent eye Pressed bent eye
made of 1.0718 galv.
BL approx. 50 daN
387010001

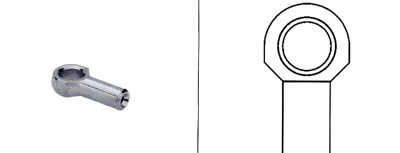

Pressed eye terminal Pressed eye terminal
made of brass, nickel-plated
BL 125 daN
387010016

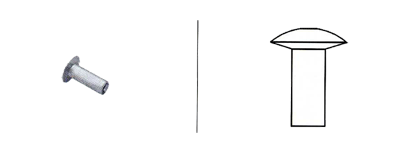

Pressed domed end stop Pressed domed end stop
made of 3.025
BL 125 daN
387010017

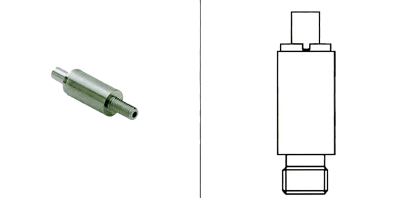

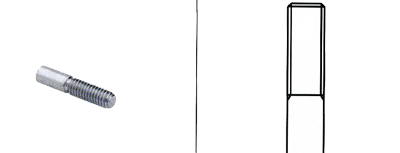

Pressed threaded terminal M4x10 Anpreß-Gewinde M4x10,
made of 1.0718 galv.
BL 125 daN
387010018

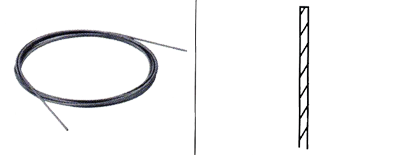

Special wire rope Special wire rope
ø 1,5 mm high tensile
387010014

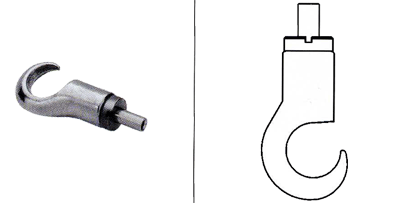

Sliding hook Sliding hook
made of 0.8135 nickel-plated
BL 75 daN
387010003
Sliding eye Sliding eye
made of 0.8135 nickel-plated
BL 125 daN
387010002
Sliding cylinder with flange Sliding cylinder with flange
made of 2.0401 nickel-plated
BL 125 daN
387010004

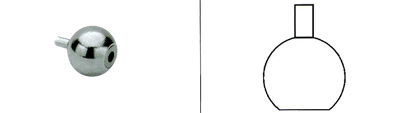

Sliding ball Sliding ball
made of 2.0401 nickel-plated
BL 125 daN
387010008

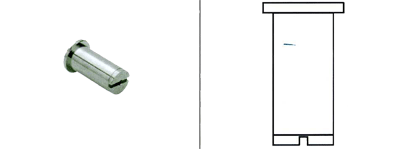

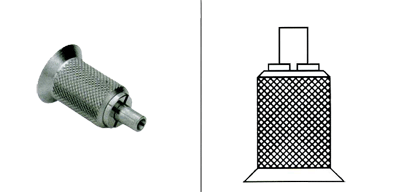

Slinding shelves support, knurled Slinding shelves support, knurled
made of 2.0401 nickel-plated
BL 125 daN
387010019

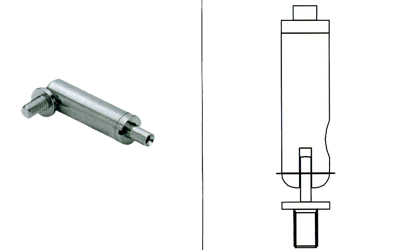

Sliding cylinder with internal Sliding cylinder with internal threaded link M5
made of 2.0401 nickel-plated
BL 125 daN
387011005

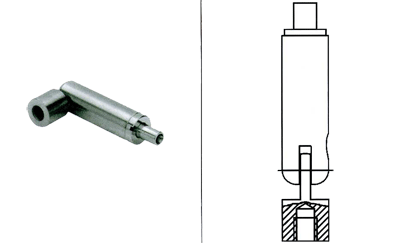

Sliding cylinder with internal threaded link M6 Stell-Zylinder mit Gelenk u. Innengewinde M6,
aus 2.0401 vernickelt
BL 125 daN
387011006

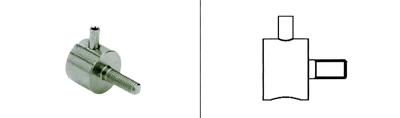

Sliding cylinder with outside threaded link M5 Sliding cylinder with outside threaded link M5
made of 2.0401 nickel-plated
BL 125 daN
387012005
Sliding cylinder with outside threaded link M6 Sliding cylinder with outside threaded link M6
made of 2.0401 nickel-plated
BL 125 daN
387012006
Ceiling support Ceiling support
made of 2.0401 nickel-plated
BL 125 daN
387010009
Pressed nipple for ceiling support Pressed nipple for ceiling support (without wire ropr)
made of 1.0718 galv.
BL 125 daN
387010020
Floor support Floor support
made of 2.0401 nickel-plated
BL 125 daN
387010010

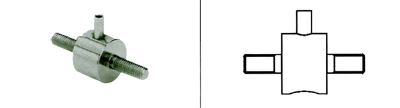

Sliding cylinder with outside thread M5 Sliding cylinder with outside thread M5
made of 2.0401
BL 125 daN
387013005
Sliding cylinder with outside thread M6 Sliding cylinder with outside thread M6
made of 2.0401
BL 125 daN
387013006
Sliding cylinder with outside thread M8 Sliding cylinder with outside thread M8
made of 2.0401
BL 125 daN
387013008

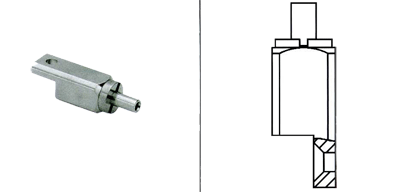

Sliding single shelf support Sliding single shelf support
made of 2.0401 nickel-plated
BL 125 daN
387010021
Sliding double shelf support Sliding double shelf support
made of 2.0401 nickel-plated
BL 125 daN
387010022

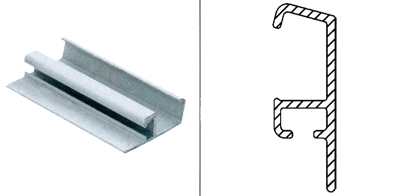

Extruded picture support 3,0 m Extruded picture support 3,0 m
made of 3.0205
(The extruded picture support
will be delivered including 5
hooks and assembling material.)
387010011
Assembly instruction for extruded picture support
Hooks for picture support Hooks for picture support
made of 0.8135 galv.
387010012
Please note that the above figures are breaking load limits (BL) and not working load limits. To calculate the working load limit please divide the breaking load limit by the valid safety factor. Further types on request.
