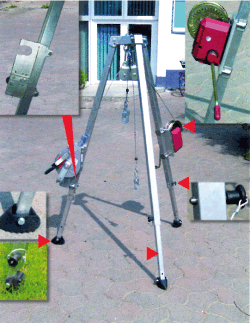

Aluminium tripod - combination unit
Aluminium tripod - combination unit model equipment extent stock no.
Version 1 Aluminium tripod, Load winch with automatic brake and
12 m rope, rope ø 5 mm, self-retracting lanyards
type HRA with 12 m rope, body belts for
self-retracting lanyard type HRA 12, with two pulleys
1310012
Version 2 Aluminium tripod, Load winch with automatic brake and
18 m ropw, rope ø 5 mm, self-retracting lanyards
type HRA with 18 m rope, body belts for
self-retracting lanyard type HRA 18, with two pulleys
1310013
Technical Specifications:

WLL winch: 300 kg
weight version 1: 27,0 kg
weight version 2: 30,0 kg

Retracted total length: 1500 mm
Radius of the mainstays: 1100 mm
gauge: 935 mm

Out rides total length: 2390 mm
Radius of the mainstays: 1800 mm
gauge: 1415 mm
