Webbing slings four layered EN 1492-1
WLL L loop- loop- band- weight stock no.
WLL min. lenght width width per lfm
type (kg) (m) (mm) (mm) (mm) (kg)
SAS-V 2.000 2.000 1,0 350 30 30 0,4 1350009-L
SAS-V 4.000 4.000 1,2 400 35 60 0,8 1350010-L
SAS-V 6.000 6.000 1,7 500 50 90 1,2 1350011-L
SAS-V 8.000 8.000 2,0 700 65 120 1,6 1350012-L
SAS-V 10.000 10.000 2,3 800 80 150 2,0 1350013-L
SAS-V 12.000 12.000 2,5 750 95 180 2,4 1350014-L
SAS-V 16.000 16.000 2,9 1100 125 240 3,2 1350015-L
SAS-V 20.000 20.000 3,2 1200 155 300 4,0 1350016-L

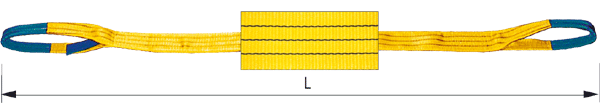

L = length in meters
webbing sling EN 1492-1
