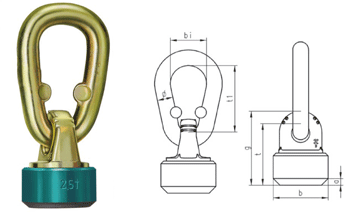

Attachment swivel THEIPA® Point-S weld-on-type |
![]() |
![]() |
|||||||||||
code | a | b | g | t | link | weight | |||||
stock no. | |||||||||||
(mm) | (mm) | (mm) | (mm) | ø x t1 x bi | (kg) | ||||||
TP-S 2,5 | 5,5 x 45° | 52 | 68 | 57 | 16x70x34 | 0,95 | 1210041 | ||||
TP-S 4,0 | 7,0 x 45° | 57 | 74 | 62 | 18x85x45 | 1,30 | 1210042 | ||||
TP-S 6,7 | 8,5 x 45° | 70 | 95 | 78 | 20x85x45 | 2,20 | 1210043 | ||||
TP-S 10,0 | 10,0 x 45° | 80 | 102 | 83 | 23x115x60 | 3,80 | 1210044 | ||||
TP-S 17,0 | 12,0 x 45° | 100 | 129 | 106 | 30x140x70 | 6,66 | 1210045 | ||||
kind of attachment | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|||||
number of pieces | 1 | 1 | 2 | 2 | 2 | 2 | 3 oder 4 | 3 oder 4 | |||
inclination angle | 0° | 90° | 0° | 90° | 0-45° | 45-60° | 0-45° | 45-60° | |||
code | WLL (kg) | ||||||||||
TP-S 2,5 | 5.000 | 2.500 | 10.000 | 5.000 | 3.550 | 2.500 | 5.300 | 3.750 | |||
TP-S 4,0 | 8.000 | 4.000 | 16.000 | 8.000 | 5.600 | 4.000 | 8.500 | 6.000 | |||
TP-S 6,7 | 12.000 | 6.700 | 24.000 | 13.400 | 9.500 | 6.700 | 14.000 | 10.000 | |||
TP-S 10,0 | 15.000 | 10.000 | 30.000 | 20.000 | 14.000 | 10.000 | 21.200 | 15.000 | |||
TP-S 17,0 | 25.000 | 17.000 | 50.000 | 34.000 | 23.500 | 17.000 | 35.000 | 25.000 | |||
The advantages:
- marks on the swivel give a clear indication of inclination angels |
