The advantages:
- secured four times against breakage in all load directions
- enormously flat
- rotates 360°
- admissible working range
of take-up link 110°
- automatically locking link
|

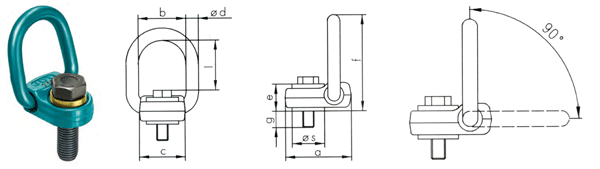

code |
screw |
torque |
a |
b |
c |
d |
e |
f |
g |
l |
s |
weight |
stock no. |
|
(mm) |
(NM) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
FP 0,5 |
M10x40 |
40 |
69 |
50 |
48 |
13 |
28 |
100 |
12 |
52 |
34 |
0,71 |
1210049 |
FP 0,8 |
M12x45 |
65 |
69 |
50 |
48 |
13 |
28 |
100 |
17 |
51 |
34 |
0,73 |
1210050 |
FP 1,5 |
M16x55 |
160 |
69 |
50 |
48 |
13 |
28 |
100 |
27 |
49 |
34 |
0,77 |
1210051 |
FP 2,5 |
M20x70 |
250 |
69 |
50 |
48 |
13 |
28 |
100 |
42 |
46 |
34 |
0,86 |
1210052 |
FP 4,0 |
M24x80 |
300 |
104 |
76 |
72 |
18 |
39 |
147 |
41 |
74 |
58 |
2,50 |
1210053 |
FP 5,0 |
M27x90 |
400 |
104 |
76 |
72 |
18 |
39 |
147 |
51 |
72 |
58 |
2,63 |
1210054 |
FP 6,0 |
M30x90 |
500 |
104 |
76 |
72 |
18 |
39 |
147 |
51 |
70 |
58 |
2,74 |
1210055 |
Bolts according to ISO 4017 (DIN 933/10.9), 100 % crack-tested. |
kind of attachment |
 |
 |
 |
 |
 |
 |
number of pieces |
1 |
1 |
2 |
2 |
2 |
2 |
3 oder 4 |
3 oder 4 |
inclination angle |
0° |
90° |
0° |
90° |
0-45° |
45-60° |
0-45° |
45-60° |
code |
WLL (kg) |
FP 0,5 M10 |
500 |
700 |
1000 |
1400 |
700 |
500 |
1000 |
700 |
FP 0,8 M12 |
800 |
1250 |
1600 |
2500 |
1120 |
800 |
1600 |
1120 |
FP 1,5 M16 |
1500 |
2120 |
3000 |
4000 |
2100 |
1500 |
3150 |
2240 |
FP 2,5 M20 |
2500 |
3550 |
5000 |
7100 |
3350 |
2500 |
5000 |
3750 |
FP 4,0 M24 |
4000 |
5600 |
8000 |
11200 |
5600 |
4000 |
8000 |
6000 |
FP 5,0 M27 |
5300 |
7100 |
10600 |
14000 |
7100 |
5300 |
11200 |
8000 |
FP 6,0 M30 |
6000 |
8000 |
12000 |
16000 |
8000 |
6000 |
12500 |
9000 |
In the case of an unsymmetrical load distriburion,
the lifting capacities applicable to the 2 and 3-/4-leg slings are the same as for 1-leg types at 0°. |
