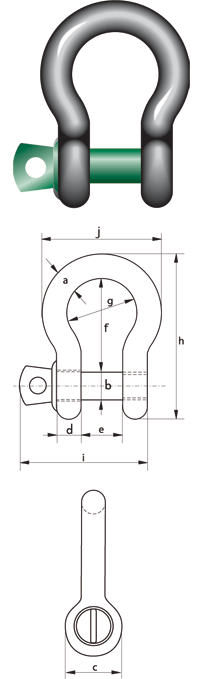

WLL |
a |
b |
c |
d |
e |
f |
g |
h |
i |
j |
weight |
stock no. |
| (t) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
| 0,33 |
5,0 |
6 |
12,0 |
5,0 |
9,5 |
22,0 |
16 |
36 |
29,5 |
26 |
0,02 |
1070161 |
| 0,50 |
7,0 |
8 |
16,5 |
7,0 |
12,0 |
29,0 |
20 |
48,5 |
38 |
34 |
0,05 |
1070162 |
| 0,75 |
9,0 |
10 |
20,0 |
9,0 |
13,5 |
32,0 |
22 |
56 |
46,5 |
40 |
0,10 |
1070163 |
| 1,00 |
10,0 |
11 |
22,5 |
10,0 |
17,0 |
36,5 |
26 |
63,5 |
54 |
46 |
0,14 |
1070164 |
| 1,50 |
11,0 |
13 |
26,5 |
11,0 |
19,0 |
43,0 |
29 |
74 |
59,5 |
51 |
0,19 |
1070165 |
| 2,00 |
13,5 |
16 |
34,0 |
13,5 |
22,0 |
51,0 |
32 |
89 |
73 |
58 |
0,36 |
1070166 |
| 3,25 |
16,0 |
19 |
40,0 |
16,0 |
27,0 |
64,0 |
43 |
110 |
89 |
75 |
0,63 |
1070167 |
| 4,75 |
19,0 |
22 |
46,0 |
19,0 |
31,0 |
76,0 |
51 |
129 |
103 |
89 |
1,01 |
1070168 |
| 6,50 |
22,0 |
25 |
52,0 |
22,0 |
36,0 |
83,0 |
58 |
144 |
119 |
102 |
1,50 |
1070169 |
| 8,50 |
25,0 |
28 |
59,0 |
25,0 |
43,0 |
95,0 |
68 |
164 |
137 |
118 |
2,21 |
1070170 |
| 9,50 |
28,0 |
32 |
66,0 |
28,0 |
47,0 |
108,0 |
75 |
185 |
153 |
131 |
3,16 |
1070171 |
| 12,00 |
32,0 |
35 |
72,0 |
32,0 |
51,0 |
115,0 |
83 |
201 |
170 |
147 |
4,31 |
1070172 |
| 13,50 |
35,0 |
38 |
80,0 |
35,0 |
57,0 |
133,0 |
92 |
227 |
186 |
162 |
5,55 |
1070173 |
| 17,00 |
38,0 |
42 |
88,0 |
38,0 |
60,0 |
146,0 |
99 |
249 |
203 |
175 |
7,43 |
1070174 |
| 25,00 |
45,0 |
50 |
103,0 |
45,0 |
74,0 |
178,0 |
126 |
300 |
243 |
216 |
12,84 |
1070175 |
| 35,00 |
50,0 |
57 |
111,0 |
50,0 |
83,0 |
197,0 |
138 |
331 |
272 |
238 |
18,15 |
1070176 |
| 42,50 |
57,0 |
65 |
130,0 |
57,0 |
95,0 |
222,0 |
160 |
377 |
310 |
274 |
26,29 |
1070177 |
| 55,0 |
65,0 |
70 |
145,0 |
65,0 |
105,0 |
260,0 |
180 |
433 |
344 |
310 |
37,60 |
1070178 |
| Material |
Bow and pin high tensile steel, Grade 6, tempered |
| safety factor: |
MBL = 6-fold WLL |
| standards: |
EN 13889 and meets the performance requirements of US Fed. Spec. RR-C-271
Typ IVA Class 3, Grade A |
| surface treatment: |
galvanized |
| Operating temperature range: |
-20 °C bis + 200 °C |
|
