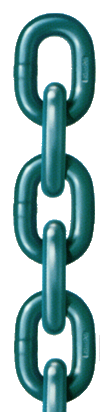

ENORM-Short link chains for lifting purposes grade 100 |
 |
 |
nominal size | WLL | MPF | BF | weight | stock no. |
| (mm) | (kg) | (kN) | (kN) | (kg/m) | ||
| 6 x 18 | 1.400 | 35,3 | 56,5 | 0,80 | 1170001 | |
| 8 x 24 | 2.500 | 62,8 | 101,0 | 1,50 | 1170002 | |
| 10 x 30 | 4.000 | 98,2 | 157,0 | 2,30 | 1170003 | |
| 13 x 39 | 6.700 | 166,0 | 265,0 | 3,90 | 1170004 | |
| 16 x 48 | 10.000 | 251,0 | 402,0 | 5,80 | 1170005 | |
| 18 x 54 | 12.500 | 318,0 | 509,0 | 7,40 | 1170006 | |
| 22 x 66 | 19.000 | 475,0 | 760,0 | 11,00 | 1170007 | Allowed working load limits according to EN 818-6 for different chain temperature. -40°C to 200°C = 100 % / 200°C to 300°C = 90 % / 300°C to 400°C = 75 % |
