Safety swiel hook type CLW
with brass bushing
Grad 80

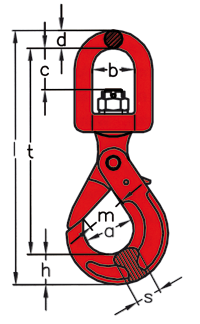

Safety swiel hook type CLW

nominal size WLL a b c d h l m s t weight stock no.
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
6-8 1.120 35 30 29 12 25,5 187 30 17,5 150 0,60 1150116
7/8-8 2.000 45 33 25 12,5 29 255 38 21,6 175 1,00 1150117
10-8 3.150 55 40 33 15 36 260 44 30,6 212 1,90 1150118
13-8 5.300 70 50 40 17 47 320 50 36,7 254 3,80 1150119
16-8 8.000 90 60 54 20 56 400 66 41,5 321 7,30 1150120
18/20-8 12.500 101 71 58 23 59 441 78 49,7 355 9,80 1150121
When loaded in line along centre line.
If it is necessary to revolve hooks under load, we recommend the use of ball bearing hooks.
