Shortening clutch type GKL with spring
Grad 80

Shortening clutch type GKL with spring

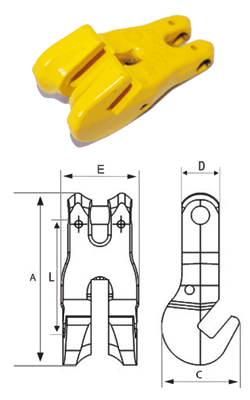

nominal size WLL L A B C d weight stock no.
(kg) (mm) (mm) (mm) (mm) (mm) (kg)
6-8 1.200 53 75 34 38 15 0,30 1150196
8-8 2.000 65 93 42 42 20 0,50 1150197
10-8 3.150 84 120 55 58 25 1,00 1150198
13-8 5.400 103 150 66 76 32 1,80 1150199
16-8 8.000 122 179 79 90 40 3,40 1150200
Permitted as shortening unit for lashing chains acc. to EN 12195-3.
