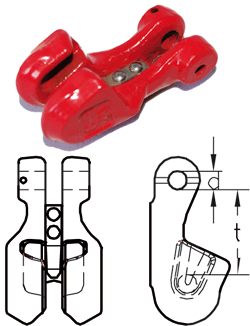

Shortening clutch type VKF with spring | ![]() |
![]() |
nominal size | WLL | d | t | weight | stock no. |
(kg) | (mm) | (mm) | (kg) | |||
6-8 | 1.120 | 8 | 45 | 0,40 | 1150190 | |
7-8 | 1.500 | 8,8 | 46 | 0,30 | 1150191 | |
8-8 | 2.000 | 10 | 54 | 0,60 | 1150192 | |
10-8 | 3.150 | 12 | 77 | 1,00 | 1150193 | |
13-8 | 5.300 | 16 | 91 | 1,80 | 1150194 | |
16-8 | 8.000 | 20 | 103 | 2,90 | 1150195 | |
Is attached directly to the chain leg, without additional connecting units. Permitted as shortening unit for lashing chains acc. to EN 12195-3. |
