Gear winche RGL | ![]() |
Construction according to DIN 15020. Braked design with double pawl system. Crank gradually adjustable in length. Drum and shafts provided with bearings. Freewheel, through protected pawl system. Powdercoating RAL 2004. |
![]() |
|||||||||||||||||||
type | lifting capacity | cable | cable | gear ratio | weight | stock no. | ||||||||||||||
1st layer | last layer | max. | diameter | without rope | ||||||||||||||||
(kg) | (kg) | (m) | (mm) | (kg) | ||||||||||||||||
RGL-150 | 150 | 45 | 22 | 4 | 2.84:1 | 9,20 | 1570001 | |||||||||||||
RGL-300 | 300 | 100 | 30 | 5 | 6.67:1 | 16,50 | 1570002 | |||||||||||||
RGL-500 | 500 | 300 | 30 | 6 | 7,75:1 | 18,50 | 1570003 | |||||||||||||
Rope on request. | ||||||||||||||||||||

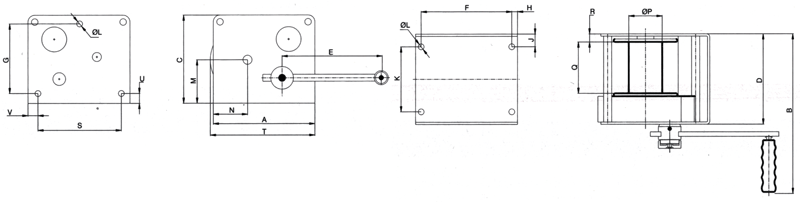

Dimensions in mm | ||||||||||||||||||||
type | A | B | C | D | F | G | H | J | K | L | M | N | P | Q | R | S | T | U | V | |
RGL-150 | 180 | 324 | 150 | 150 | 154 | 102 | 13,0 | 18 | 114 | 7x9 | 70,0 | 66,4 | 55 | 77,3 | 18,0 | 132 | 177 | 18,0 | 24,0 | |
RGL-300 | 225 | 379 | 195 | 200 | 200 | 154 | 12,5 | 28 | 144 | 7x13 | 96,0 | 77,5 | 74 | 107,0 | 24,5 | 184 | 232 | 22,5 | 20,5 | |
RGL-500 | 242 | 380 | 200 | 200 | 200 | 154 | 21,0 | 28 | 144 | 7x13 | 102,7 | 83,0 | 74 | 107,0 | 24,5 | 184 | 251 | 22,0 | 29,0 | |
![]() |
