Worm gear winche RWL | ![]() |
Complies with DIN 15020. Load pressure brake. Adjustable crank length; backwind-free. Drums and axes run on needle bearings. Types above load capacity of 2000 kg have two speeds, that can be shifted by changing the crank over. Paint finish and enamel varnish are standard. |
![]() |
|||||||||||||||||||
type | lifting capacity | cable | cable | gear ratio | weight | stock no. | ||||||||||||||
1st layer | last layer | max. | rope | without rope | ||||||||||||||||
(kg) | (kg) | (m) | (mm) | (kg) | ||||||||||||||||
RWL-250 | 250 | 75 | 20 | 5 | 15:1 | 11,00 | 1570004 | |||||||||||||
RWL-500 | 500 | 300 | 30 | 6 | 24:1 | 17,00 | 1570005 | |||||||||||||
RWL-1000 | 1000 | 550 | 35 | 9 | 26:1 | 36,00 | 1570006 | |||||||||||||
Rope on request. | ||||||||||||||||||||

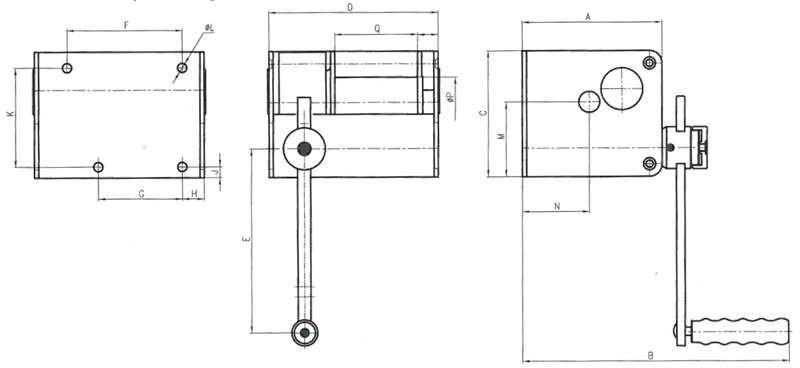

Dimensions in mm | ||||||||||||||||||||
type | A | B | C | D | F | G | H | J | K | L | M | N | P | Q | R | |||||
RWL-250 | 167 | 332 | 150 | 202 | 137 | 100 | 26 | 13 | 118 | 11 | 89,0 | 80 | 60 | 99 | 24,5 | |||||
RWL-500 | 195 | 360 | 188 | 260 | 182 | 130 | 32 | 18 | 142 | 13 | 111,5 | 93 | 70 | 144 | 29,0 | |||||
RWL-1000 | 295 | 490 | 300 | 300 | 167 | 167 | 32 | 21 | 250 | 17 | 180,5 | 136 | 102 | 158 | 33,0 | |||||
![]() |
