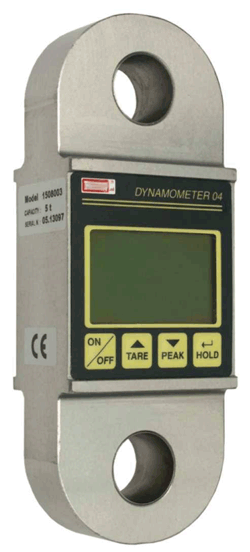

Crane scale Dynamometer 04
Crane scale Dynamometer 04

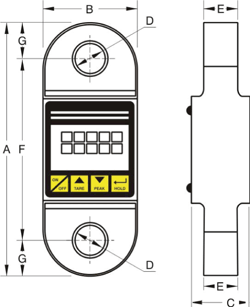

type safe working load resolution A B C D E F G bow shackle weight stock no.
(kg) (kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (t) (kg)
DSD04-2,5 2500 1 215 85 54 21 25 159 28 3,25 incl. 1,35 1660001
DSD04-5,0 5000 2 232 85 54 27 32 168 32 6,50 incl. 1,85 1660002
DSD04-10,0 10000 5 315 100 59 39 49 203 56 12,0 excl. 3,60 1660003
DSD04-20,0 20000 10 350 126 70 55 70 210 70 25,0 excl. 7,00 1660004
Complete with plastic case, manual and calibration certificate.

Mechanical properties
Anodized aluminum housing.
Electric class of protection: IP 65.
Overload indication at 10% overload.
Test load: 2 x measurement limit.
Safety factor: 5 x measurement limit.

Electric specifications:
Power supply: standard 9V battery.
Operating time: up to 100 hours.

Electronic specifications:
5-digit LCD display, 17 mm digit height.
Ambient temperature: -10°C to +55°C.
Accuracy: appr.0.15% of the displayed value.

Functions
Automatic resetting when switched on.
Easy-to-use menu: ON/OFF, tare, peak value and hold buttons.
Self-calibrating at zero and weight values.
Readout possibilities: gross, net and tare weight.
In peak value function, maximum weight is held.
In hold function, current weight is held.
Measuring unit selection (kg - t - ton - lbs - daN - kN).
Automatic power supply OFF.

Option
Bow shackle >10 Ton.
