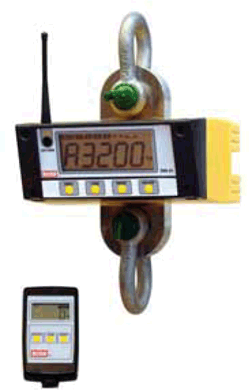

Crane scale Dynamometer 01 TX with RX hand read receiver
Crane scale Dynamometer 01 TX

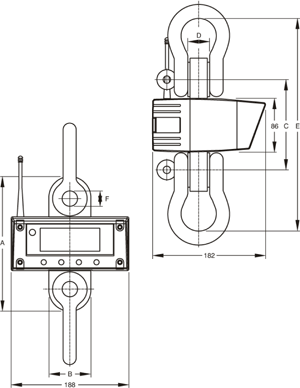

type safe working load resolution A B C D E F bow shackle weight stock no.
(kg) (kg) (mm) (mm) (mm) (mm) (mm) (mm) (t) (kg)
DSD01TX-3,2 3200 1 199 69 130 25 269 20 3,25 inkl. 4,20 1660005
DSD01TX-6,3 6300 2 213 69 144 35 348 26 6,50 inkl. 6,50 1660006
DSD01TX-10 10000 5 265 100 181 50 455 36 12,00 exkl. 9,60 1660007
Complete with plastic case, manual and calibration certificate.


Mechanical properties
Aluminum housing.
Alloy steel traction unit.
Test load: 2 x WLL (without disconnecting the traction unit).
Safety factor 5 x WLL.
Electric class of protection/Ingress Protection: IP65 (EN 60529).

Electrical Specifications
Alkaline battery (3 x AA type).
Operating time approx 180 hours.

Electronic specifications
Ambient temperature of between -5 °C to +55 °C.
Accuracy to about 0.1% of the readings.
Battery indicator.

Functional Specifications
Automatic resetting when switched on.

Digital zero and weight settings
Digital stabilization filter, with a greater attenuation of weight fluctuations.
Easy-to-use menu: ON/OFF, tare, peak value and hold buttons.
Unit selection (kg - t - ton - lbs - daN - kN).
Automatic power-OFF selection.

RX-PORT electrical specifications
Alkaline batteries (3 x AA type).
Operating time approx 150 hours.
Battery-level indicator.

RX-PORT electronic specifications
LCD display with 5 positions, 12 mm digit height.
868 MHz frequency control.
Ambient temperature -5 °C to +55 °C.
RS232 port for printer or PC connection.

TX-LOAD electrical specifications
Transmission range up to 50m.
TX-LOAD electronic specifications
868 MHz frequency control.

Standard delivery
Bow shackles.
Remote control.
Plastic case.
Manual.
Calibration certificate.

Option
Bow shackle > 10 ton.
U-13 shackle (2635013) for 0,6 and 1,0 ton.
