	Round steel link chains DIN 763/766

DIN 763 long links, prooved, dont calibrated Chains after this standard dont be used when Load lifting attachments or power-drieven lifting appliances.

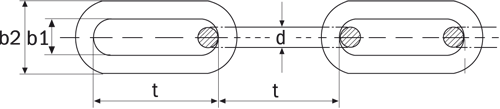

	Chain dimensions ca. (mm)				loading capacity	breaking load	weight	stock no.
	d	t	b1 min.	b2 max.	(kg)	(kN)	ca. (kg/m)	bright polished	hot dip galvanized	electro galvanized
	4	32,0	7,2	16,8	100	6,3	0,27	1110001	1110009	1110017
	5	35,0	9,0	21,0	160	10,0	0,43	1110002	1110010	1110018
	6	42,0	10,8	25,2	200	12,5	0,63	1110003	1110011	1110019
	7	49,0	12,6	29,4	300	19,0	0,86	1110004	1110012	1110020
	8	52,0	14,4	33,6	400	25,0	1,10	1110005	1110013	1110021
	10	65,0	18,0	42,0	630	40,0	1,75	1110006	1110014	1110022
	13	82,0	23,4	54,6	1.000	63,0	2,95	1110007	1110015	1110023
	16	100,0	28,8	67,2	1.600	100,0	4,45	1110008	1110016	1110024

DIN 766 Güteklasse 3, short links, prooved, calibrated Chains after this standard dont be used when Load lifting attachments or power-drieven lifting appliances.
	Chain dimensions ca. (mm)				loading capacity	breaking load	weight	stock no.
	d	t	b1 min.	b2 max.	(kg)	(kN)	ca. (kg/m)	bright polished	hot dip galvanized	electro galvanized
	5	18,5	6,0	17,0	320	12,5	0,50	1110025	1110031	1110037
	6	18,5	7,2	20,4	400	16,0	0,80	1110026	1110032	1110038
	7	22,0	8,4	23,8	630	25,0	1,10	1110027	1110033	1110039
	8	24,0	9,6	27,2	800	32,0	1,40	1110028	1110034	1110040
	10	28,0	12,0	36,0	1.250	50,0	2,30	1110029	1110035	1110041
	13	36,0	15,6	47,0	2.000	80,0	3,90	1110030	1110036	1110042
