Knotted-link chain
according to DIN 5686, galvanized
Knotted-link chains chains dont be used when
Load lifting attachments, Lifting means ...

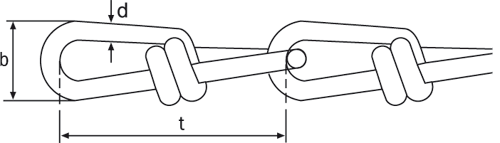

Knotted-link chain according to DIN 5686 nominal size Chain dimensions (mm) weight stock no.
d t b ca. (kg/100 m)
16 1,6 22 7 5,00 1110068
20 1,8 25 8 7,00 1110069
22 2,0 28 9 8,00 1110070
25 2,2 31 10 10,00 1110071
27 2,5 35 11 14,00 1110072
30 2,8 39 13 16,0 1110073
32 3,1 40 14 20,00 1110074
35 3,4 44 15 25,00 1110075
40 3,8 46 17 32,00 1110076
