Alloy Grade 80 chain acc. to EN 818-2 |
 |
black varnished or with SP 100
|

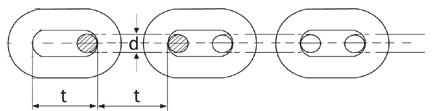

nominal size | WLL | t | b | weight | stock no. | ||
| (kg) | (mm) | (mm) | (kg/m) | black varnished | SP100 | |||
| 6-8 | 1.120 | 18 | 8,0 | 0,8 | 1110051 | 1110062 | ||
| 7-8 | 1.500 | 21 | 10,5 | 1,1 | 1110052 | 1110063 | ||
| 8-8 | 2.000 | 24 | 10,8 | 1,5 | 1110053 | 1110064 | ||
| 10-8 | 3.150 | 30 | 13,5 | 2,3 | 1110054 | 1110065 | ||
| 13-8 | 5.300 | 39 | 17,5 | 3,8 | 1110055 | 1110066 | ||
| 16-8 | 8.000 | 48 | 21,5 | 6,1 | 1110056 | 1110067 | ||
| 18-8 | 10.000 | 54 | 24,3 | 7,3 | 1110057 | - | ||
| 19-8 | 11.200 | 57 | 25,0 | 8,5 | 1110058 | - | ||
| 20-8 | 12.500 | 60 | 27,0 | 9,0 | 1110059 | - | ||
| 22-8 | 15.000 | 66 | 29,5 | 10,9 | 1110060 | - | ||
| 26-8 | 21.200 | 78 | 35,0 | 15,2 | 1110061 | - | ||
 |
||||||||
