Vertical lifting clamp CNM | ![]() |
Purposely designed for damage-free hoisting and safe transportation of stainless steel, aluminum and wooden sheets. The two synthetic-coated segments will not mark (plate) materials. |
|||||||||||

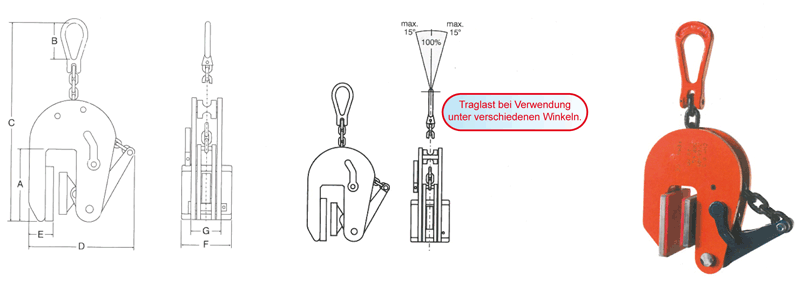

Modell | Safe working load | Jaw opening | dimensions (mm) | weight | stock no. | ||||||
kg) | (mm) | A | B | C | D | E | F | G | (kg) | ||
CNM-0,5 | 500 | 1 - 20 | 93 | 65 | 360 | 220 | 48 | 80 | 48 | 5,50 | 1530001 |
CNM-0,5G | 500 | 17 - 37 | 93 | 65 | 360 | 240 | 48 | 80 | 48 | 6,00 | 1530002 |
CNM-1,0 | 1.000 | 1 - 30 | 95 | 80 | 400 | 275 | 46 | 80 | 54 | 6,50 | 1530003 |
CNM-1,5 | 1.500 | 1 - 40 | 95 | 80 | 400 | 275 | 46 | 80 | 54 | 7,20 | 1530004 |
CNM-2,0 | 2.000 | 1 - 50 | 120 | 100 | 710 | 406 | 63 | 80 | 65 | 14,00 | 1530005 |
CNM-3,0 | 3.000 | 1 - 60 | 120 | 100 | 710 | 406 | 63 | 80 | 65 | 15,00 | 1530006 |
![]() |
|||||||||||
