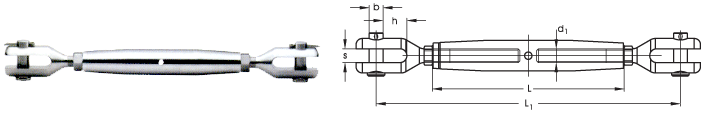

-machined |
 |
nominal size |
thread |
h |
s |
b |
L |
L1 |
min. breaking load* |
stock no. |
|
d1 |
mm |
mm |
mm |
mm |
mm |
kg |
|
M20 |
M20 |
35,5 |
20 |
19 |
240 |
455 |
13.000 |
371220020 |
M22 |
M22 |
38 |
22 |
22 |
270 |
455 |
17.000 |
371220022 |
M24 |
M24 |
39,5 |
25 |
25 |
325 |
530 |
20.000 |
371220024 |
M27 |
M27 |
41 |
30 |
28 |
345 |
577 |
25.500 |
371220027 |
M30 |
M30 |
51 |
35 |
32 |
375 |
665 |
31.000 |
371220030 |
M36 |
M36 |
49,5 |
35 |
35 |
410 |
690 |
43.000 |
371220036 |
| * These figures are breaking load limits not working load limits. |
|

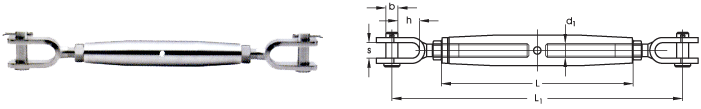

-welded |
 |
nominal size |
thread |
h |
s |
b |
L |
L1 |
min. breaking load* |
stock no. |
|
d1 |
mm |
mm |
mm |
mm |
mm |
kg |
|
M20 |
M20 |
41,0 |
24 |
19 |
240 |
408 |
13.000 |
371230020 |
M22 |
M22 |
46,5 |
30 |
22 |
270 |
472 |
17.000 |
371230022 |
M24 |
M24 |
49,3 |
30 |
25,4 |
325 |
536 |
20.000 |
371230024 |
| * These figures are breaking load limits not working load limits. |
