ASS Attaching clip | ![]() |
![]() |
|||||||||

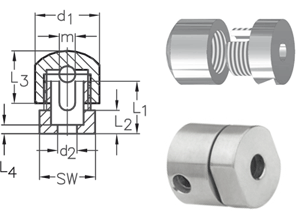

ASS Attaching clip for rope diameter 3 mm, 4 mm und 5 mm ![]() | nominal size | L1 | L2 | L3 | d1 | d2 | SW | m | stock no. |
mm | mm | mm | mm | mm | mm | mm | |||
5 | 18 | 8 | 18 | 22 | 6,5 | 19 | 5,5 | 332010005 | |
Assembly instructions | |||||||||

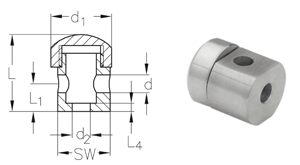

ASS End stop for ASS Attaching clip for thread up to M6 passend bis Gewinde M6 ![]() | nominal size | L | L1 | d | d1 | d2 | SW | stock no. | |
mm | mm | mm | mm | mm | mm | ||||
5 | 27 | 10 | 6,5 | 22 | 6,5 | 19 | 332013005 | ||
Assembly instructions |
