ASS Angle Stopper | ![]() |
![]() |
|||||||||

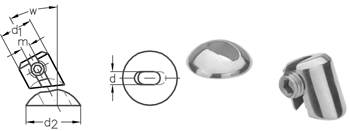

for flat posts![]() | nominal size | fits for rope | d | d1 | d2 | m | w | stock no. | |
mm | mm | mm | mm | von | bis | ||||
4 | 3+4 | 6,5 | 15 | 20 | 4,2 | 25° | 45° | 332520004 | |
6 | 5+6 | 10,5 | 20 | 24 | 6,2 | 25° | 45° | 332520006 | |
The ASS Angle Stopper are only applicable with ASS Threaded terminals, Super-Mini type and for rope constructions 6x7-WSC and 6x19M-WSC. The bottom part is not slotted. |
|||||||||
for round posts![]() | nominal size | fits for rope | d | d1 | d2 | m | w | stock no. | |
mm | mm | mm | mm | von | bis | ||||
4 | 3+4 | 6,5 | 15 | 20 | 4,2 | 25° | 45° | 332522004 | |
6 | 5+6 | 10,5 | 20 | 24 | 6,2 | 25° | 45° | 332522006 | |
The ASS Angle Stopper are only applicable with ASS Threaded terminals, Super-Mini type and for rope constructions 6x7-WSC and 6x19M-WSC. The bottom part is not slotted. |
|||||||||
example pictures |
