ASS Attaching sleeve | ![]() |
![]() |
|||||||||

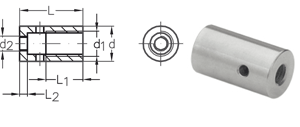

ASS Attaching sleeve | |||||||||
![]() | nominal size | *rope-ø | L | L1 | L2 | d | d1 | d2 | stock no. |
mm | mm | mm | mm | mm | |||||
M8 | 1,5+2 | 20 | 12 | 3 | 12 | M8 | M4 | 351010008 | |
M10 | 3+4 | 25 | 15 | 3 | 14 | M10 | M6 | 351010010 | |
*The ropes must have an ASS Cylindrical terminal on one end. this terminal functions like a stopper avoiding the rope slipping out of the ASS Locking cap. As an alternative, one might assemble the rope with the ASS Clamping ring.This is possible, when the ASS Clamping ring nominal size 2 with a wire rope 2 mm is used on the one hand and the ASS Attaching sleeve and ASS Locking cap M10 on the other hand. The combination of other sizes is not possible as the outside diameter of the ASS Clamping ring is too big and the single parts do not fit together! |
|||||||||

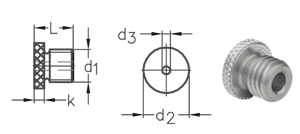

ASS Locking cap | |||||||||
![]() | nominal size | L | k | d1 | d2 | d3 | stock no. | ||
mm | mm | mm | mm | ||||||
M8 | 9 | 2,5 | M8 | 12 | 2,5 | 351110008 | |||
M10 | 12 | 3,0 | M10 | 14 | 4,5 | 351110010 | |||
example pictures |
