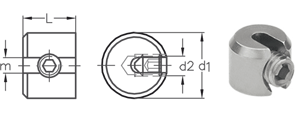

ASS Stopper | ![]() |
![]() |
|||||||
![]() | nominal size | rope-ø | m | d1 | d2 | L | stock no. |
mm | mm | mm | mm | ||||
2 | 1,5+2 | 2,2 | 10 | M4 | 8 | 351710002 | |
4 | 3+4 | 4,3 | 15 | M8 | 12 | 351710004 | |
6 | 5+6 | 6,3 | 20 | M10 | 15 | 351710006 | |
Only applicable for rope constructions 6x7-WSC and 6x19M-WSC. | |||||||
example pictures |
