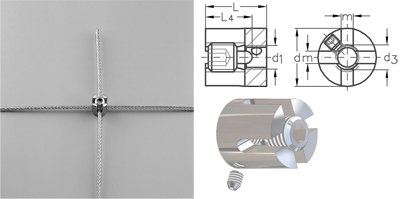

NIRO Cross-over clip, simple
with connection to the wall M8
nominal size
rope-ø
d
L
L4
d1
d3
m
stock no.
mm
mm
mm
mm
mm
4
3+4
20
21
16
M8
M10
4,2
341012004
Shall be used for simple rope cross-over at right angles.
The fixing on the wall is done by using a threaded rod M8.
