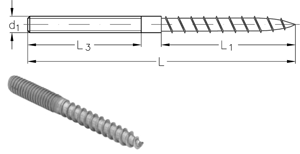

NIRO Wall Stud with wood thread |
|
 |
- with right or left hand thread (metric thread) and wood thread, always right hand | ||||||||
| nominal size | L | L1 | L3 | stock no. | ||||
| d1 | mm | mm | mm | right hand thread | left hand thread | ||||
| M4 | 70 | 40 | 28 | 303014004 | - | ||||
| M5 | 80 | 43 | 32 | 303014005 | 303015005 | ||||
| M6 | 90 | 50 | 35 | 303014006 | 303015006 | ||||
| M8 | 130 | 65 | 55 | 303014008 | 303015008 | ||||
| M10 | 150 | 75 | 55 | 303014010 | 303015010 | ||||
| all wall studs are supplied with right hand thread unless specified otherwise. | |||||||||
