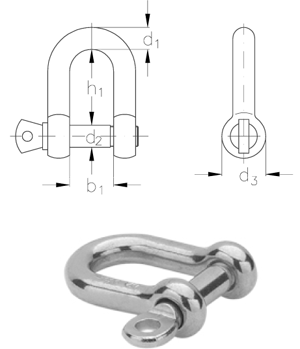

NIRO Shackle, U-type
breaking load*
d1
d2
d3
b1
h1
stock no.
kg
mm
mm
mm
mm
mm
5
1200
5
5
10
10
17
308400005
6
1500
6
6
12
12
21
308400006
8
2500
8
8
16
16
28
308400008
10
4500
10
10
19
19
35
308400010
12
6000
11
12
24
23
41
308400012
13
7000
13
13
26
26
45
308400013
16
8000
15
16
32
31
55
308400016
19
12000
18
19
38
38
66
308400019
22
15000
21
22
44
45
76
308400022
25
18000
24
25
50
50
87
308400025
* Please note that the above figures are breaking load limits and not working load limits.
