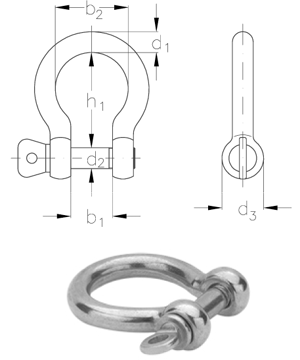

NIRO Shackle, anchor type
nominal size
breaking load*
d1
d2
d3
b1
b2
h1
stock no.
kg
mm
mm
mm
mm
mm
mm
4
500
4
4
8
8
14
18
308300004
5
1000
5
5
10
10
18
23
308300005
6
1600
6
6
12
12
21
27
308300006
8
2800
8
8
16
15
28
37
308300008
10
4000
10
10
20
19
35
46
308300010
12
5000
12
12
24
24
42
55
308300012
* Please note that the above figures are breaking load limits and not working load limits.
